Examples

We often have the requirement to display articles for a product in a table. For this reason we provide this configuration as an example by default, that will let you build a simple table from the children article of your product. We will display these attributes SKU, Quantity and Price in the table.

Simple Table with Placeholder​

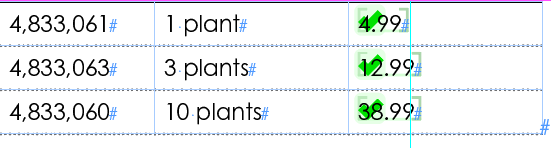

The table contains 3 columns.

  • First column: SKU of the article
  • Second column: Quantity of the article
  • Third column: Price of the article. Cell is linked to a specific placeholder.

User uploaded image

XML Configuration:

User uploaded image

The XML configuration directly controls how table is rendered in the output:

  • <tableConfiguration>: Main element of table configuration. It defines the table structure and formatting.
    • mode="bucket": Table is built by a bucket.
    • <rowFilters>: The filters to select which child buckets are included as rows in the table.
      • entityIdentifier: The entity identifier of the child buckets to be included.
    • <column>: Define the columns of the table.
      • width: width of the column.
      • sort: Sorting order of the column.
      • <body>: Body cell configuration of the column.
        • <keyValue>: The key value to be displayed in the cell. It can be a static value or a placeholder.
        • placeholderId: Which's placeholder to be used in the cell.
        • <functionVariables>: All placeholder options that placeholder supports.

For a detailed reference please take a look here.
