MediaAsset

Overview​

1. AccPack_MediaAsset​

The AccPack_MediaAsset gets a media asset of a bucket or planned bucket and places it in an image frame. Returns the first matching asset. Use this for single-image placeholders — product shots, logos, or any other image linked to the current bucket.

2. Architectural Decision: Choosing the Correct Media Placeholder​

Selecting the appropriate media asset placeholder depends on whether the layout requires a single specific image or an aggregated collection of assets.

PlaceholderPrimary FunctionIdeal Use Case
AccPack_MediaAssetGets a single media asset from a bucket or planned bucket and places it in an image frame.Single-image placeholders like main product shots or brand logos.
AccPack_MediaAssetsGets multiple images from a bucket or planned bucket and converts them to elements in a Multi-Frame.Image galleries, technical drawing series, or multi-view product shots.
AccPack_MediaAssetLabelSearches for assets primarily by matching a regular expression against the media asset label.Scenarios where label-based search is the primary selection mechanism rather than an entity ID.

When to choose AccPack_MediaAsset: A consultant should choose this placeholder specifically for single-image placeholders (e.g., a product shot). It is designed to return the first matching asset based on specified filters. While AccPack_MediaAssetLabel also supports label searching, AccPack_MediaAsset is preferred for entity-based linkage—standard product images linked via established PIM relations.

Technical Specification​

Placeholder type: Image Frame

Entity: Works with both planning records and bucket records

Function Variables​

  • Media type: Filters assets by type (e.g., {*} for any, print, internet).

  • Media format: Filters assets by format (e.g., {*} for any, tiff, jpeg).

  • Selection: Defines filtering logic based on planning record selection (see Selection Variable Logic below).

  • Search String: Searches for image labels. Multiple entries can be delimited by ;. Supports the regexp: prefix for regular expression matching (e.g., regexp:IMG(.*)).

  • Result Entity ID: Defines the media asset entity identifier.

Developer Specifications​

  • Data Query: com.priint.accpack.placeholder.dataquery.MediaAssetQueryPlugin.getListMediaAsset.

  • Data Mapping: com.priint.accpack.placeholder.datamapping.MediaAssetDataMapping.firstMediaAssetToFileUrlOrFilePath (supports retrieving the file URL or file path).

  • Data Processing: None.

Global Configuration Logic​

1. Context Definition​

Generic placeholders default to using the _language and _country parameters.

  • Static Value Reset: If the child bucket data is language-neutral, the context can be reset using the default staticValue Context Rule.

  • Mixed Usage: Use the useDocumentVariableWithEntityCheck rule to automatically skip context if an entity is not dynamic.

2. Selection Variable Logic​

The Selection variable determines behavior when a planning record is assigned in the Planner UI:

  • Ignore selected content: Every child bucket is recognized, bypassing any specific selections made in the planning record.

  • Only selected content: Only child buckets explicitly selected in the planning record will be built.

  • Use all if no content selected: Acts as the fallback state, building all child buckets unless a specific selection exists.

Technical Environment & Deployment​

Consultants could find guide for deployment of generic placeholders here: installation & configuration

Demonstration & Implementation Examples​

  • Please check the example document which provides demo for AccPack_MediaAsset: Example

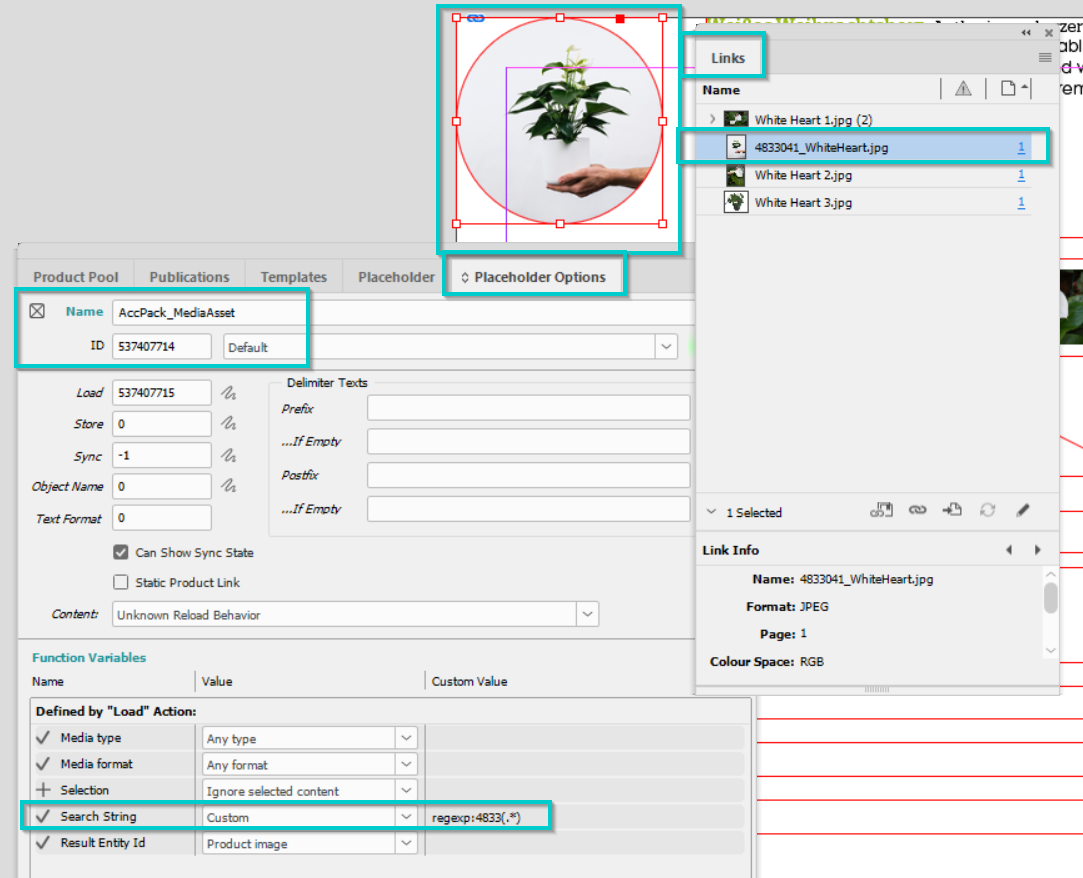

Result
